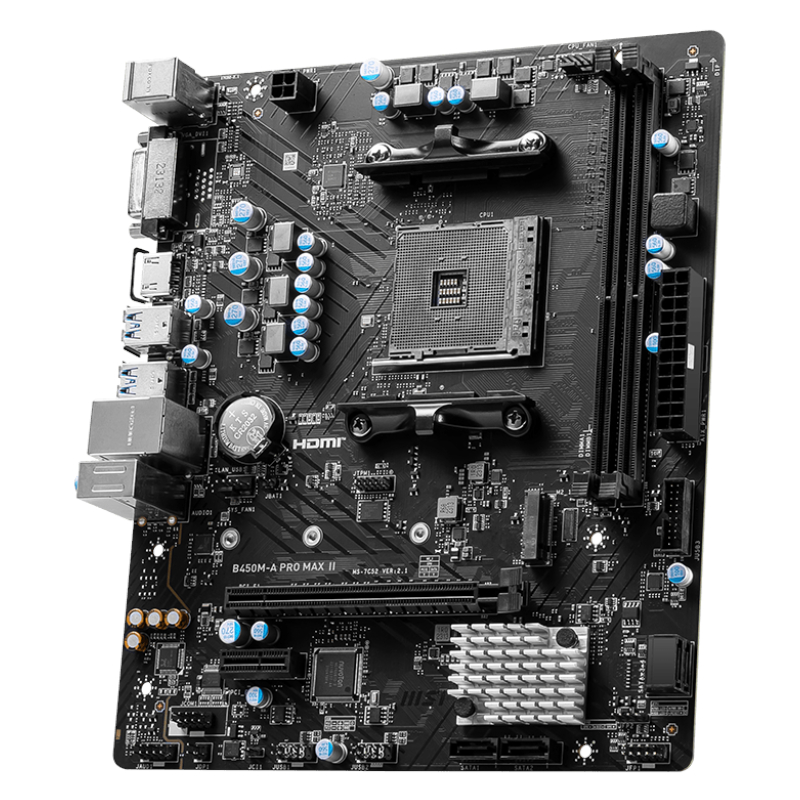

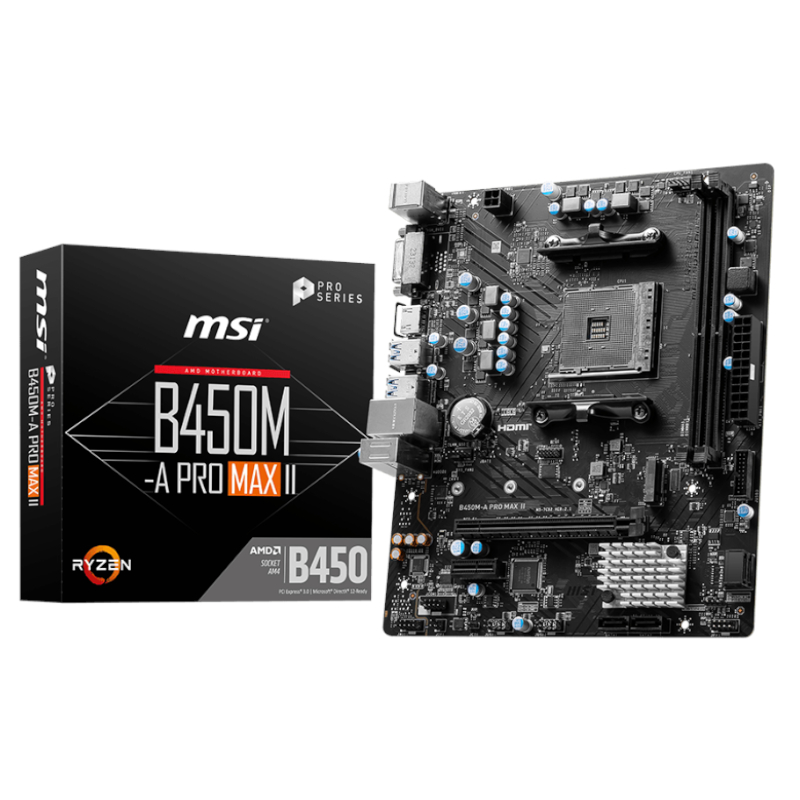

MSI B450M-APRO MAX II AMD AM4 MATX Gaming Motherboard


The MSI B450M-A Pro Max II motherboard provides lightning-fast system boot-up, application, and game loading. Turbo M.2 is more than 5 times faster than a regular SATA III connection, with speeds up to 32 GB/s per device using Gen3 x4!

Core Boost is the most recent upgrade to MSI’s motherboard CPU power delivery system. A reserved zone of premium power delivery components on an optimised circuit design results in a highly efficient power system that can output precise current to the CPU.

Reward your ears with studio-quality sound. MSI Audio Boost produces the best sound possible by utilising high-quality audio components. This allows you to enjoy stunning, studio-quality sound for the most immersive audio experience.

For clever business solutions, PRO Series motherboards combine stable functionality and high-quality assembly. PRO Series motherboards are designed to meet any professional workflow, making life easier for businesses and office use.

50 in stock

SKU: B450M-APROMAXII-S Categories: , Tags: , , , ,



  • Supports 1st, 2nd and 3rd Gen AMD® Ryzen™ / Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD® Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4
  • Supports DDR4 memory up to 4133 (OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximises performance for NVMe-based SSDs.
  • Audio Boost: Reward your ears with studio-grade sound quality.
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.


  • Socket: AM4
  • CPU Support:
  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics
  • Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
  • Chipset: AMD B450
  • DDR4 Memory: DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE), 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
  • Memory Channel: Dual-Channel DDR4
  • DIMM Slots: 2
  • Max Memory (GB): 64
  • PCI-E Gen: Gen3
  • PCI-E x16: 1
  • PCI-E x1: 1
  • SATA III: 4
  • M.2 Slot: 1
  • TPM (Header): 1

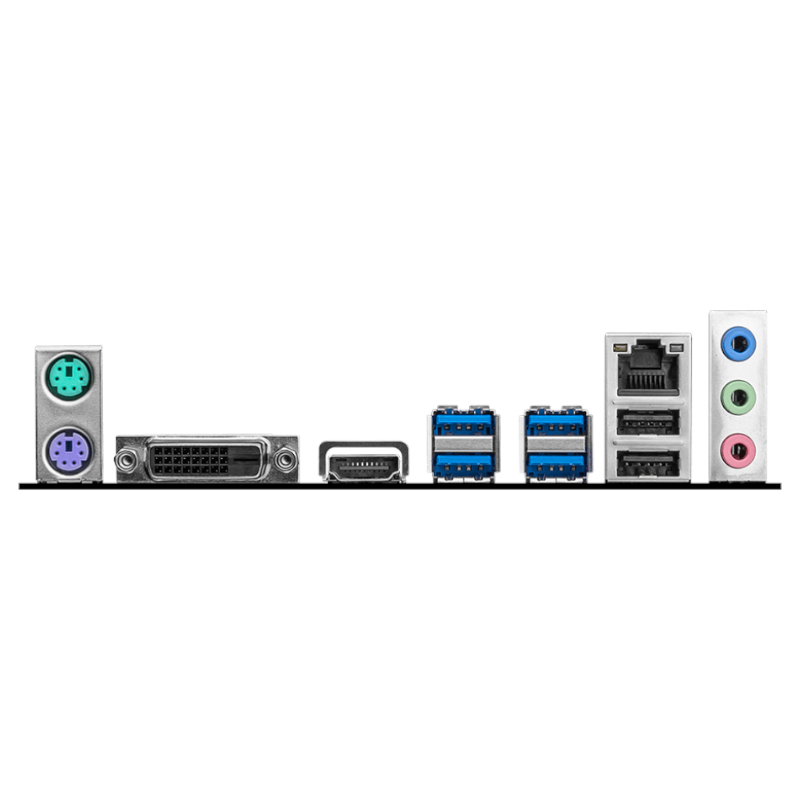

  • USB 3.2 Ports (Front): 2 (Gen1, Type A)
  • USB 3.2 Ports (Rear): 4 (Gen1, Type A)
  • USB 2.0 Ports (Front): 4
  • USB 2.0 Ports (Rear): 2
  • Serial Ports (Front): 1
  • LAN port (Rear): Realtek® 8125 2.5Gigabit LAN controller
  • Audio ports (Rear): Realtek® ALC897 Codec
  • DVI-D: 1
  • HDMI: 1
  • DirectX: 12
  • Form Factor: m-ATX
  • Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit


  • MSI B450M-A PRO MAX II AMD AM4 mATX Gaming Motherboard – Black x1
  • Driver DVD x1
  • I/O Shield x1
  • SATA Cable x2
  • Quick Install Guide x1

Additional information

Weight 1,658 kg
Dimensions 26 × 5,2 × 26 cm

36 Months
